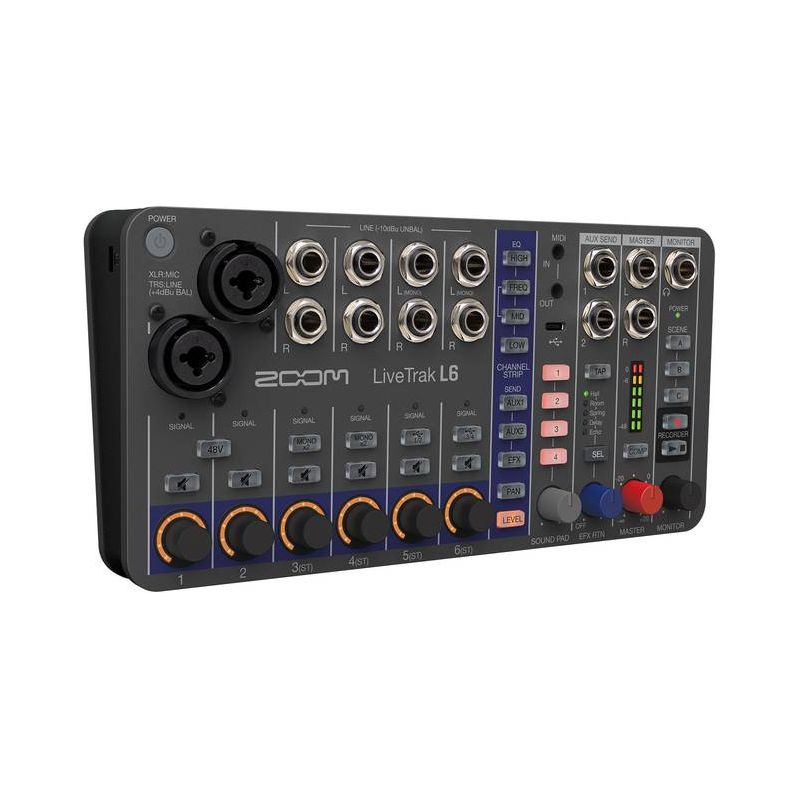

Big Features in a Small Package
The LiveTrak L6 is Zoom's most compact and portable digital mixer and recorder. Capture high-quality audio with 10 tracks, effects, MIDI, and sound pads, making it ideal for musicians, live streamers, and content creators.
Professional Mixing Capabilities
Despite its size, the L6 offers professional mixer features. Each channel includes a full strip with aux sends, pan, effects, and a versatile 3-band mid-sweepable EQ for precise sound shaping.
Powerful Multi-Track Recording
Record 10 discrete tracks plus the stereo mix directly to a microSD card (up to 2TB). Easily share your live mix or transfer individual tracks to your preferred DAW for post-production.

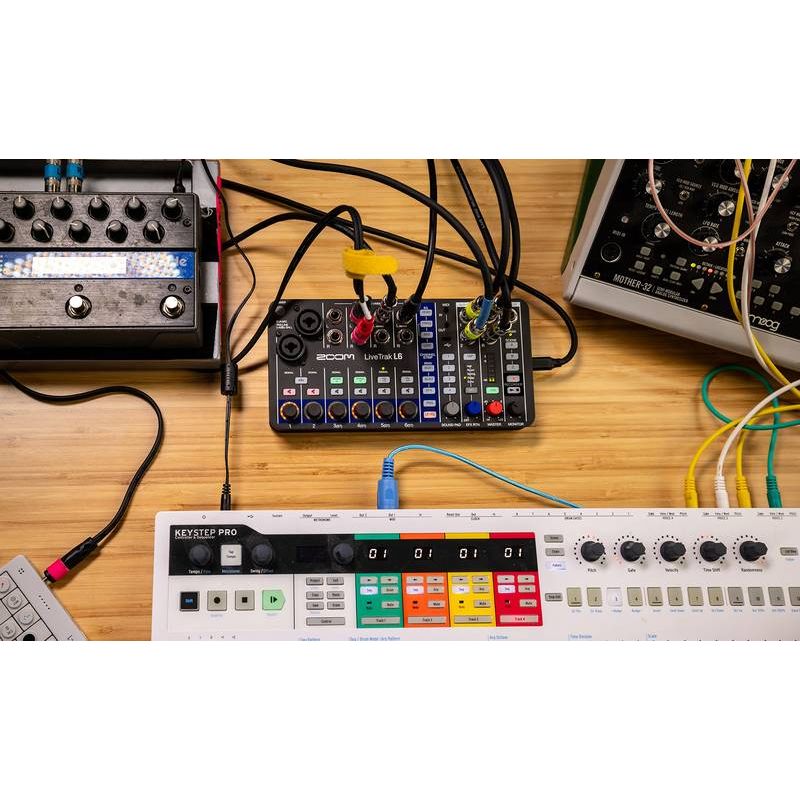

Versatile MIDI Connectivity
Connect and sync the L6 with your external gear using the 3.5mm MIDI I/O, or connect to your computer via USB.
- Control parameters like volume, pan, and EQ on external MIDI devices
- Trigger sound pads and switch scenes remotely
- Synchronize tempo for delay and echo effects
Record & Control Simultaneously

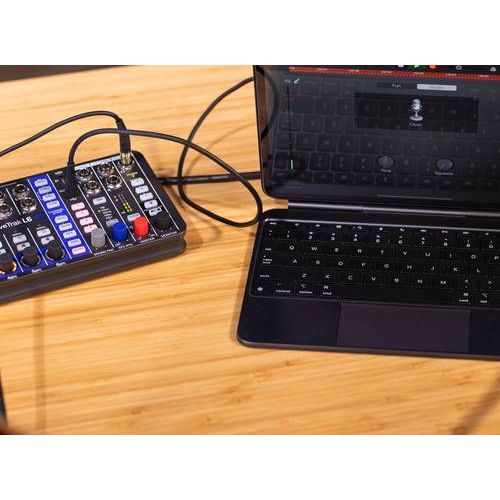

Use the L6 as a high-quality 12-in / 4-out USB audio interface (32-bit float) for your computer, iOS, or Android device, while simultaneously recording to the microSD card. It also functions as a control surface for popular DAWs.
Broadcast and Stream with Confidence
The L6 is perfect for enhancing your video streams with broadcast-quality audio, no matter where you are. Connect seamlessly to your favorite streaming software on PC, Mac, iOS, and Android devices.
Portable Power Options
Power the L6 for up to 3 hours using four AA batteries or connect a USB battery for extended portable use.
Comprehensive I/O
Plenty of Inputs
A. INPUTS | 2 XLR/TRS combo inputs and 4 stereo ¼” inputs.
B. MONO x2 | Optionally use two additional mono inputs instead of a stereo input.
C. USB RETURN | Receive audio from a laptop for backing tracks and other sound sources.
Flexible Outputs
A. AUX OUTPUTS | Send custom mixes to monitors, effects processors, or external devices.
B. MAIN OUTPUTS | Connect to studio monitors or live sound systems.
C. HEADPHONE OUTPUT | Dedicated headphone output with independent volume control.
Experience 32-Bit Float Technology
Capture pristine, clip-free audio every time with 32-bit float recording and high-quality preamps. Say goodbye to constant gain adjustments.

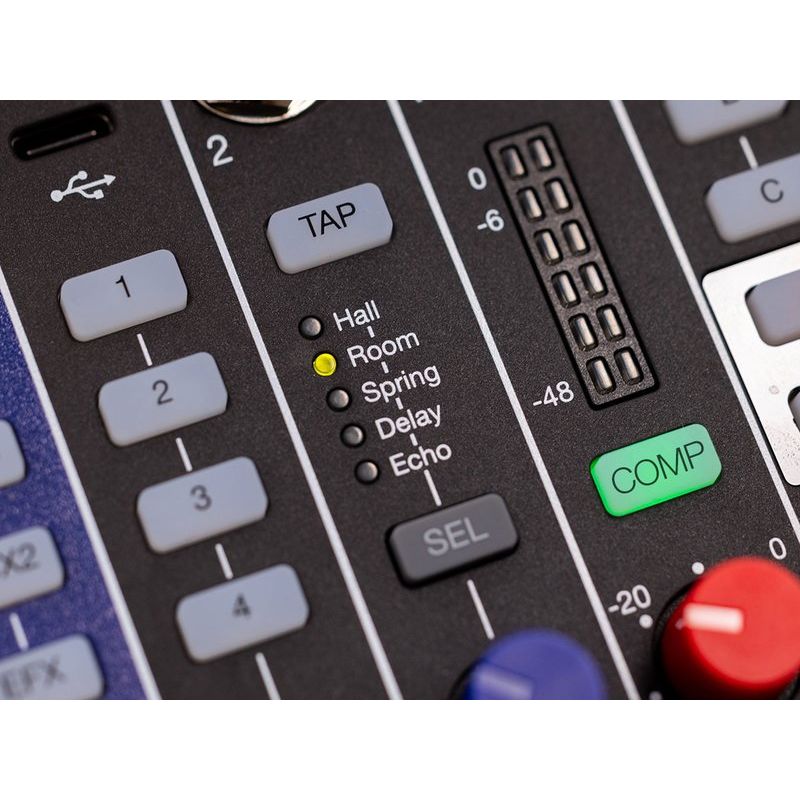

Loaded with Effects
Enhance your mix with five built-in effects, including 3 Reverbs, Delay, and Echo.
Advanced Compressor
The L6's main output compressor adds natural saturation and increases loudness without clipping, thanks to 32-bit float technology.
LED Control Knobs
Quickly and accurately adjust levels and parameters with intuitive LED control knobs.
Sound Pads
Trigger pre-recorded backing tracks or samples with four assignable sound pads. You can even sample in real time for creative performances.

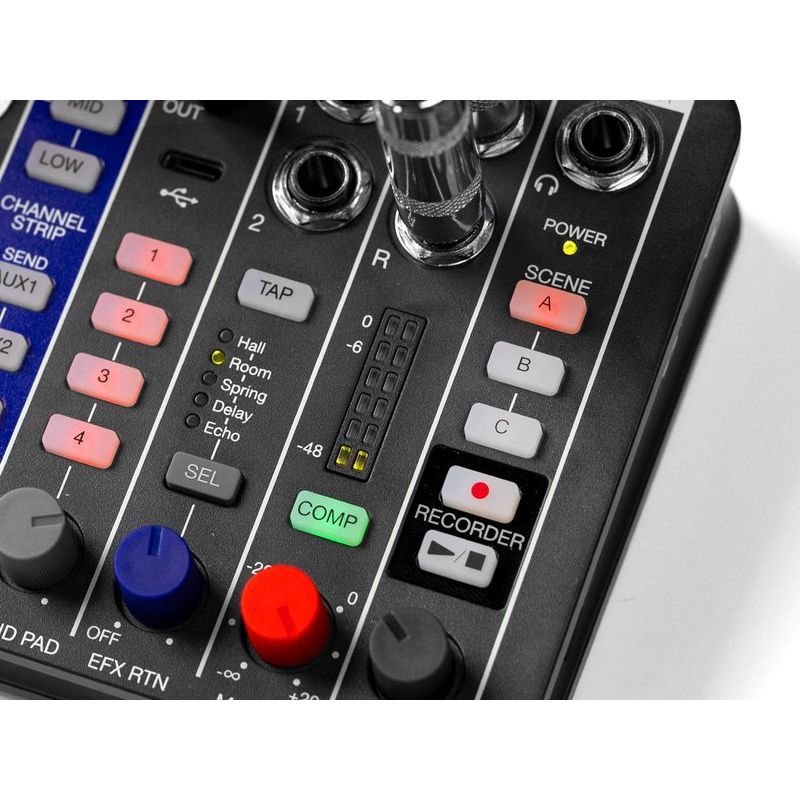

Scene Saving for Instant Recall
Save your ideal mix settings to one of three Scene Memories for quick and easy recall during performances or sessions.

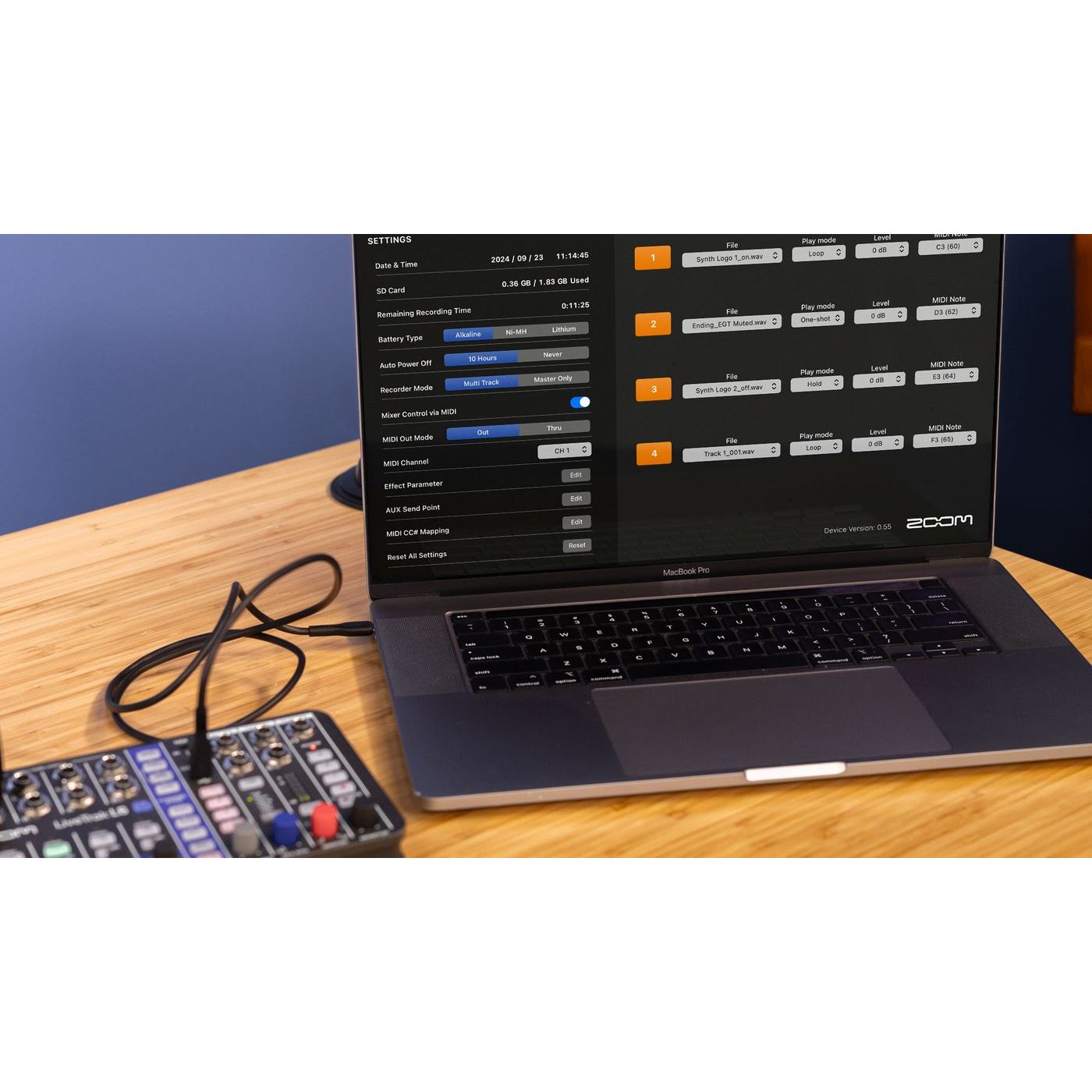

L6 Editor Software
Customize MIDI programming and settings like effect parameters, AUX send points, and sound pads using the L6 Editor Software.
Eurorack Compatible
Mount the L6 in a standard Eurorack case with the optional ERL-6 rack ears and power supply.

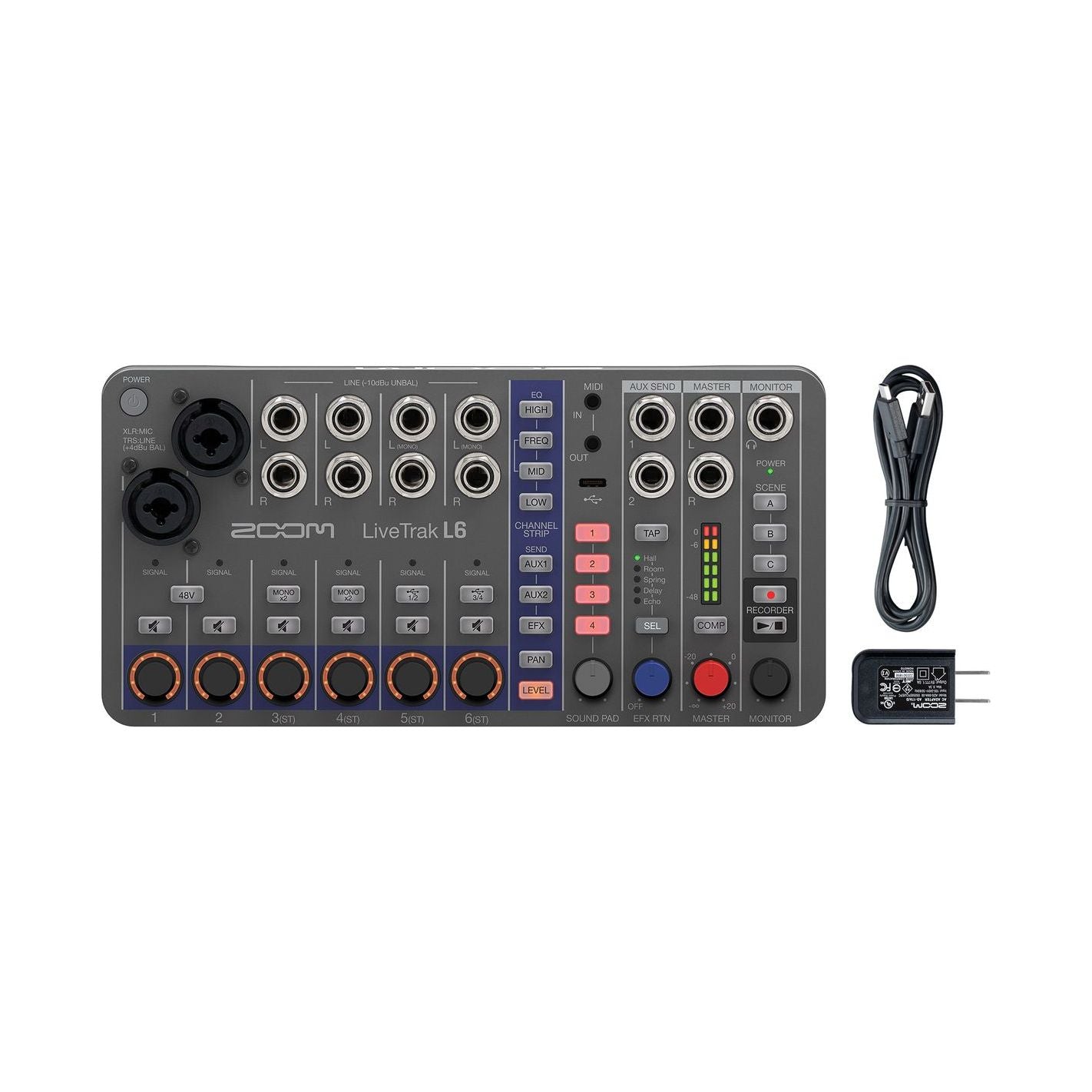

What's in the Box
- LiveTrak L6
- AD-17 USB AC Adapter
- USB-C Cable
Key Features
- Ultra-compact 10-channel digital mixer
- 2 XLR/TRS Combo inputs + 4 stereo inputs
- 12-track simultaneous recording
- MIDI In/Out for mixer control and USB MIDI interface
- 3 Scene memories for storing mixer and tempo settings
- 32-bit float multi-track recording directly to microSD card
- 5 built-in Send Effects
- 2 AUX send outputs
- 4 assignable sound pads (sample player)
- 3-Band EQ with MID frequency control for each channel
- Headphone output + Master output
- Eurorack mountable with optional kit
- 12-in / 4-out Audio interface functionality
- Powered by 4 AA batteries or USB power
Specifications
Input and Output Channels
| Inputs |
MIC/LINE (mono) |
2 |
|
LINE (stereo) |
4 |
| Outputs |
AUX SEND (mono) |
2 |
|
MASTER (stereo) |
1 |
|
MONITOR (stereo) |
1 |
Inputs
| MIC/LINE |
Connectors |
2 XLR/TRS combo jacks |
|
|
(XLR: pin 2 hot, TRS: tip hot) |
|
Input gain |
Automatic (dual A/D converters) |
|
Input impedance |
XLR: 3.8 kΩ or more |
|
|
TRS: 39 kΩ or more |
|
Maximum input level |
XLR: +4 dBu |
|
|
TRS: +24 dBu |
|
Phantom power |
+48 V (Channel total 10 mA or less) |
| LINE |
Connectors |
8 TS phone jacks (balanced) |
|
Input impedance |
10 kΩ |
|
Maximum input level |
+9 dBu |
Outputs
| AUX SEND |
Connectors |
2 TRS phone jacks (impedance balanced) |
|
Maximum output level |
+9.5 dBu |
|
Output impedance |
147 Ω |
| MASTER |
Connectors |
2 TRS phone jacks (balanced) |
|
Maximum output level |
+15 dBu |
|
Output impedance |
147 Ω |
| MONITOR |
Connector |
TRS phone jack |
|
Maximum output level |
50 mW + 50 mW (63 Ω load) |
|
Output impedance |
14.7 Ω |
Buses
| MASTER |
1 |
| AUX SEND |
2 |
| SEND EFX |
1 |
Channel Strip
| 3 BAND EQ |
HIGH |
10 kHz, ±15 dB, shelving |
|
MID |
100 Hz – 8 kHz, ±15 dB, peaking |
|
LOW |
100 Hz, ±15 dB, shelving |
Level Meters
Send Effects
Recorder
| Maximum simultaneous recording tracks |
12 |
| Maximum simultaneous playback tracks |
2 |
| Recording formats |
48 kHz, 32-bit float, mono/stereo WAV |
| Recording media |
microSDHC memory cards (Class 10 or higher) |
|
microSDXC memory cards (Class 10 or higher) |
Audio Interface
| Input and output channels |
Input: 12 channels |
|
Output: 4 channels |
| Sampling frequency |
48 kHz |
| Bit depth |
32-bit float / 24-bit |
| Interface |
USB 2.0 |
Card Reader
|
Mass storage class USB 2.0 High Speed |
Sampling Frequency
Frequency Response
Equivalent Input Noise
|
-120 dBu or less (IHF-A) at 150Ω input |
Power
| 4 AA batteries |
Alkaline, Lithium, or rechargeable NiMH |
| AC adapter |
ZOOM AD-17 : DC 5V/1A |
|
• USB bus power is supported. |
Estimated Continuous Recording Time using Batteries
| Alkaline batteries |
About 3 hours |
| NiMH batteries (1900 mAh) |
About 3.5 hours |
| Lithium batteries |
About 7 hours |
* Estimated continuous battery operation times are approximate and may vary greatly depending on usage conditions (12-track recording, phantom power off, headphones used (63Ω load), no MASTER output connections).
| Power consumption |
5 W maximum |
| Dimensions |
223 mm (W) × 114 mm (D) × 46.5 mm (H) |
| Weight (main unit only) |
526 g |
| Weight (including batteries) |
618 g |
Note: 0 dBu = 0.775 Vrms
